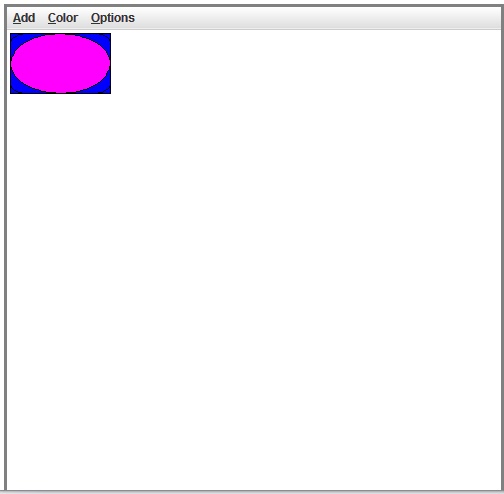

The ShapeDrawWithMenus applet lets the user add colored shapes to
a drawing area and then drag them around. The shapes are rectangles,
ovals, and roundrects. The user adds a shape to the canvas using
an "Add" menu. The shape is added at the upper left corner
of the canvas. The color of the shape is given by the current
setting of the "Color" menu. The shapes come in two sizes,
and they come with or without black borders. These two options
are controlled by items in the "Options" menu. The "Options"
menu also has an item for clearing all the shapes, and it has
a sub-menu for changing the background color. Finally, there
is a pop-up menu that will appear if the user clicks on a shape
in a certain way. (The exact action depends on the look-and-feel.
It might require right-clicking or control-clicking, for example.)
The pop-up menu contains commands for editing the shape, for
deleting it and for bringing it to the front of all the other
shapes. (The shape will also be moved to the front if the
user shift-clicks on it.)
This file defines the applet class plus several other classes used
by the applet, namely: ShapeCanvas, Shape, RectShape, OvalShape,
and RoundRectShape. These classes are nested inside the main class,
so the compiled class files for these classes will have named like
ShapeDraw$ShapeCanvas.class. All the class files are necessary to
run the applet.
This applet requires Java version 1.2 or higher.
David Eck
June 2002
Based on ShapeDraw.java
*/
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import java.util.ArrayList;
public class ShapeDrawWithMenus extends JApplet {
// The following variables are declared as instance variables
// since the objects are created in the init() method but are
// used in the ShapeCanvas class.
JCheckBoxMenuItem addLargeShapes; // Controls whether newly added
// shapes will be large or small.
JCheckBoxMenuItem addBorderedShapes; // Controls whether newly added
// will have a black border.
JRadioButtonMenuItem red, green, blue, // Control the color
cyan, magenta, yellow, // of newly added shapes.
black, gray, white;
JPopupMenu popup; // The pop-up menu, which is used for editing shapes.
public void init() {
// Set up the applet's GUI. It consists of a canvas, or drawing area
// and a menu bar. The pop-up menu is also created here.
setBackground(Color.gray); // Will appear in the Insets area, around
// the edges of the JApplet.
/* Create the "canvas" which displays the shapes and serves as
the content pane of the applet. */
ShapeCanvas canvas = new ShapeCanvas();
setContentPane(canvas);
/* Create the menu bar and the menus */
JMenuBar menubar = new JMenuBar();
setJMenuBar(menubar);
JMenu addShapeMenu = new JMenu("Add");
addShapeMenu.setMnemonic('A');
menubar.add(addShapeMenu);
JMenu shapeColorMenu = new JMenu("Color");
shapeColorMenu.setMnemonic('C');
menubar.add(shapeColorMenu);
JMenu optionsMenu = new JMenu("Options");
optionsMenu.setMnemonic('O');
menubar.add(optionsMenu);
/* Create menu items for adding shapes to the canvas,
and add them to the "Add" menu. The canvas serves
as ActionListener for these menu items. */
JMenuItem rect = new JMenuItem("Rectangle");
rect.setAccelerator( KeyStroke.getKeyStroke("ctrl R") );
addShapeMenu.add(rect);
rect.addActionListener(canvas);
JMenuItem oval = new JMenuItem("Oval");
oval.setAccelerator( KeyStroke.getKeyStroke("ctrl O") );
addShapeMenu.add(oval);
oval.addActionListener(canvas);
JMenuItem roundrect = new JMenuItem("Round Rect");
roundrect.setAccelerator( KeyStroke.getKeyStroke("ctrl D") );
addShapeMenu.add(roundrect);
roundrect.addActionListener(canvas);
/* Create the JRadioButtonMenuItems that control the color
of a newly added shape, and add them to the "Color"
menu. There is no ActionListener for these menu items.
The canvas checks for the currently selected color when
it adds a shape to the canvas. A ButtonGroup is used
to make sure that only one color is selected. */
ButtonGroup colorGroup = new ButtonGroup();
red = new JRadioButtonMenuItem("Red");
shapeColorMenu.add(red);
colorGroup.add(red);
red.setSelected(true);
green = new JRadioButtonMenuItem("Green");
shapeColorMenu.add(green);
colorGroup.add(green);
blue = new JRadioButtonMenuItem("Blue");
shapeColorMenu.add(blue);
colorGroup.add(blue);
cyan = new JRadioButtonMenuItem("Cyan");
shapeColorMenu.add(cyan);
colorGroup.add(cyan);
magenta = new JRadioButtonMenuItem("Magenta");
shapeColorMenu.add(magenta);
colorGroup.add(magenta);
yellow = new JRadioButtonMenuItem("Yellow");
shapeColorMenu.add(yellow);
colorGroup.add(yellow);
black = new JRadioButtonMenuItem("Black");
shapeColorMenu.add(black);
colorGroup.add(black);
gray = new JRadioButtonMenuItem("Gray");
shapeColorMenu.add(gray);
colorGroup.add(gray);
white = new JRadioButtonMenuItem("White");
shapeColorMenu.add(white);
colorGroup.add(white);
/* Create the "Clear" menu item, and add it to the
"Options" menu. The canvas will listen for events
from this menu item. */
JMenuItem clear = new JMenuItem("Clear");
clear.setAccelerator( KeyStroke.getKeyStroke("ctrl C") );
clear.addActionListener(canvas);
optionsMenu.add(clear);
optionsMenu.addSeparator(); // Add a separating line to the menu.
/* Create the JCheckBoxMenuItems and add them to the Options
menu. There is no ActionListener for these items because
the canvas class will check their state when it adds a
new shape. */
addLargeShapes = new JCheckBoxMenuItem("Add Large Shapes");
addLargeShapes.setSelected(true);
optionsMenu.add(addLargeShapes);
addBorderedShapes = new JCheckBoxMenuItem("Add Shapes with Border");
addBorderedShapes.setSelected(true);
optionsMenu.add(addBorderedShapes);
optionsMenu.addSeparator();
/* Create a menu for background colors, and add it to the
"Options" menu. It will show up as a hierarchical sub-menu. */
JMenu background = new JMenu("Background Color");
optionsMenu.add(background);
background.add("Red").addActionListener(canvas);
background.add("Green").addActionListener(canvas);
background.add("Blue").addActionListener(canvas);
background.add("Cyan").addActionListener(canvas);
background.add("Magenta").addActionListener(canvas);
background.add("Yellow").addActionListener(canvas);
background.add("Black").addActionListener(canvas);
background.add("Gray").addActionListener(canvas);
background.add("White").addActionListener(canvas);
/* Create the pop-up menu and add commands for editing a
shape. This menu is not used until the user performs
the pop-up trigger mouse gesture on a shape. */
popup = new JPopupMenu();
popup.add("Delete Shape").addActionListener(canvas);
popup.add("Bring to Front").addActionListener(canvas);
popup.addSeparator();
popup.add("Make Large").addActionListener(canvas);
popup.add("Make Small").addActionListener(canvas);
popup.addSeparator();
popup.add("Add Black Border").addActionListener(canvas);
popup.add("Remove Black Border").addActionListener(canvas);
popup.addSeparator();
popup.add("Set Color to Red").addActionListener(canvas);
popup.add("Set Color to Green").addActionListener(canvas);
popup.add("Set Color to Blue").addActionListener(canvas);
popup.add("Set Color to Cyan").addActionListener(canvas);
popup.add("Set Color to Magenta").addActionListener(canvas);
popup.add("Set Color to Yellow").addActionListener(canvas);
popup.add("Set Color to Black").addActionListener(canvas);
popup.add("Set Color to Gray").addActionListener(canvas);
popup.add("Set Color to White").addActionListener(canvas);
} // end init()
public Insets getInsets() {
// Allows 3 pixels of extra space around the edges of the applet
// that will appear in the background color.
return new Insets(3,3,3,3);
} // end getInsets()
//---- Nested class definitions ---
//
// The remainder of the ShapeDraw class consists of static nested class definitions.
// These are just like regular classes, except that they are defined inside
// another class (and hence have full names, when used outside this class, such
// as ShapeDraw.ShapeCanvas).
class ShapeCanvas extends JPanel
implements ActionListener, MouseListener, MouseMotionListener {
// This class represents a "canvas" that can display colored shapes and
// let the user drag them around. It uses an off-screen images to
// make the dragging look as smooth as possible.
ArrayList shapes = new ArrayList();
// holds a list of the shapes that are displayed on the canvas
ShapeCanvas() {
// Constructor: set background color to white
// set up listeners to respond to mouse actions
setBackground(Color.white);
addMouseListener(this);
addMouseMotionListener(this);
}
public void paintComponent(Graphics g) {
// In the paint method, all the shapes in ArrayList are
// copied onto the canvas.
super.paintComponent(g); // First, fill with background color.
int top = shapes.size();
for (int i = 0; i < top; i++) {
Shape s = (Shape)shapes.get(i);
s.draw(g);
}
}
public void actionPerformed(ActionEvent evt) {
// Called to respond to action events from the
// menus or pop-up menu.
String command = evt.getActionCommand();
if (command.equals("Clear")) {
shapes.clear(); // Remove all items from the ArrayList
repaint();
}
else if (command.equals("Rectangle"))
addShape(new RectShape());
else if (command.equals("Oval"))
addShape(new OvalShape());
else if (command.equals("Round Rect"))
addShape(new RoundRectShape());
else if (command.equals("Red"))
setBackground(Color.red);
else if (command.equals("Green"))
setBackground(Color.green);
else if (command.equals("Blue"))
setBackground(Color.blue);
else if (command.equals("Cyan"))
setBackground(Color.cyan);
else if (command.equals("Magenta"))
setBackground(Color.magenta);
else if (command.equals("Yellow"))
setBackground(Color.yellow);
else if (command.equals("Black"))
setBackground(Color.black);
else if (command.equals("Gray"))
setBackground(Color.gray);
else if (command.equals("White"))
setBackground(Color.white);
else if (clickedShape != null) {
// Process a command from the pop-up menu.
if (command.equals("Delete Shape"))
shapes.remove(clickedShape);
else if (command.equals("Bring to Front")) {
shapes.remove(clickedShape);
shapes.add(clickedShape);
}
else if (command.equals("Make Large"))
clickedShape.setSize(100,60);
else if (command.equals("Make Small"))
clickedShape.setSize(50,30);
else if (command.equals("Add Black Border"))
clickedShape.setDrawOutline(true);
else if (command.equals("Remove Black Border"))
clickedShape.setDrawOutline(false);
else if (command.equals("Set Color to Red"))
clickedShape.setColor(Color.red);
else if (command.equals("Set Color to Green"))
clickedShape.setColor(Color.green);
else if (command.equals("Set Color to Blue"))
clickedShape.setColor(Color.blue);
else if (command.equals("Set Color to Cyan"))
clickedShape.setColor(Color.cyan);
else if (command.equals("Set Color to Magenta"))
clickedShape.setColor(Color.magenta);
else if (command.equals("Set Color to Yellow"))
clickedShape.setColor(Color.yellow);
else if (command.equals("Set Color to Black"))
clickedShape.setColor(Color.black);
else if (command.equals("Set Color to Gray"))
clickedShape.setColor(Color.gray);
else if (command.equals("Set Color to White"))
clickedShape.setColor(Color.white);
repaint();
}
} // end actionPerformed()
void addShape(Shape shape) {
// Add the shape to the canvas, and set its size, color
// and whether or not it should have a black border. These
// properties are determined by looking at the states of
// various menu items. The shape is added at the top-left
// corner of the canvas.
if (red.isSelected())
shape.setColor(Color.red);
else if (blue.isSelected())
shape.setColor(Color.blue);
else if (green.isSelected())
shape.setColor(Color.green);
else if (cyan.isSelected())
shape.setColor(Color.cyan);
else if (magenta.isSelected())
shape.setColor(Color.magenta);
else if (yellow.isSelected())
shape.setColor(Color.yellow);
else if (black.isSelected())
shape.setColor(Color.black);
else if (white.isSelected())
shape.setColor(Color.white);
else
shape.setColor(Color.gray);
shape.setDrawOutline( addBorderedShapes.isSelected() );
if (addLargeShapes.isSelected())
shape.reshape(3,3,100,60);
else
shape.reshape(3,3,50,30);
shapes.add(shape);
repaint();
} // end addShape()
// -------------------- This rest of this class implements dragging ----------------------
Shape clickedShape = null; // This is the shape that the user clicks on.
// It becomes the draggedShape is the user is
// dragging, unless the user is invoking a
// pop-up menu. This variable is used in
// actionPerformed() when a command from the
// pop-up menu is processed.
Shape draggedShape = null; // This is null unless a shape is being dragged.
// A non-null value is used as a signal that dragging
// is in progress, as well as indicating which shape
// is being dragged.
int prevDragX; // During dragging, these record the x and y coordinates of the
int prevDragY; // previous position of the mouse.
public void mousePressed(MouseEvent evt) {
// User has pressed the mouse. Find the shape that the user has clicked on, if
// any. If there is no shape at the position when the mouse was clicked, then
// ignore this event. If there is then one of three things will happen:
// If the event is a pop-up trigger, then the pop-up menu is displayed, and
// the user can select from the pop-up menu to edit the shape. If the user was
// holding down the shift key, then bring the clicked shape to the front, in
// front of all the other shapes. Otherwise, start dragging the shape.
if (draggedShape != null) {
// A drag operation is already in progress, so ignore this click.
// This might happen if the user clicks a second mouse button before
// releasing the first one(?).
return;
}
int x = evt.getX(); // x-coordinate of point where mouse was clicked
int y = evt.getY(); // y-coordinate of point
clickedShape = null; // This will be set to the clicked shape, if any.
for ( int i = shapes.size() - 1; i >= 0; i-- ) {
// Check shapes from front to back.
Shape s = (Shape)shapes.get(i);
if (s.containsPoint(x,y)) {
clickedShape = s;
break;
}
}
if (clickedShape == null) {
// The user did not click on a shape.
return;
}
else if (evt.isPopupTrigger()) {
// The user wants to see the pop-up menu
popup.show(this,x-10,y-2);
}
else if (evt.isShiftDown()) {
// Bring the clicked shape to the front
shapes.remove(clickedShape);
shapes.add(clickedShape);
repaint();
}
else {
// Start dragging the shape.
draggedShape = clickedShape;
prevDragX = x;
prevDragY = y;
}
}
public void mouseDragged(MouseEvent evt) {
// User has moved the mouse. Move the dragged shape by the same amount.
if (draggedShape == null) {
// User did not click a shape. There is nothing to do.
return;
}
int x = evt.getX();
int y = evt.getY();
draggedShape.moveBy(x - prevDragX, y - prevDragY);
prevDragX = x;
prevDragY = y;
repaint(); // redraw canvas to show shape in new position
}
public void mouseReleased(MouseEvent evt) {
// User has released the mouse. Move the dragged shape, and set
// draggedShape to null to indicate that dragging is over.
// If the shape lies completely outside the canvas, remove it
// from the list of shapes (since there is no way to ever move
// it back on screen). However, if the event is a popup trigger
// event, then show the popup menu instead.
if (draggedShape == null) {
// User did not click on a shape. There is nothing to do.
return;
}
int x = evt.getX();
int y = evt.getY();
if (evt.isPopupTrigger()) {
// Check whether the user is trying to pop up a menu.
// (This should be checked in both the mousePressed() and
// mouseReleased() methods.)
popup.show(this,x-10,y-2);
}
else {
draggedShape.moveBy(x - prevDragX, y - prevDragY);
if ( draggedShape.left >= getSize().width || draggedShape.top >= getSize().height ||
draggedShape.left + draggedShape.width < 0 ||
draggedShape.top + draggedShape.height < 0 ) { // shape is off-screen
shapes.remove(draggedShape); // remove shape from list of shapes
}
repaint();
}
draggedShape = null; // Dragging is finished.
}
public void mouseEntered(MouseEvent evt) { } // Other methods required for MouseListener and
public void mouseExited(MouseEvent evt) { } // MouseMotionListener interfaces.
public void mouseMoved(MouseEvent evt) { }
public void mouseClicked(MouseEvent evt) { }
} // end class ShapeCanvas
// ------- Nested class definitions for the abstract Shape class and three -----
// -------------------- concrete subclasses of Shape. --------------------------
static abstract class Shape {
// A class representing shapes that can be displayed on a ShapeCanvas.
// The subclasses of this class represent particular types of shapes.
// When a shape is first constructed, it has height and width zero
// and a default color of white.
int left, top; // Position of top left corner of rectangle that bounds this shape.
int width, height; // Size of the bounding rectangle.
Color color = Color.white; // Color of this shape.
boolean drawOutline; // If true, a black border is drawn on the shape
void reshape(int left, int top, int width, int height) {
// Set the position and size of this shape.
this.left = left;
this.top = top;
this.width = width;
this.height = height;
}
void setSize(int width, int height) {
// Set the size of this shape
this.width = width;
this.height = height;
}
void moveBy(int dx, int dy) {
// Move the shape by dx pixels horizontally and dy pixels vertically
// (by changing the position of the top-left corner of the shape).
left += dx;
top += dy;
}
void setColor(Color color) {
// Set the color of this shape
this.color = color;
}
void setDrawOutline(boolean draw) {
// If true, a black outline is drawn around this shape.
drawOutline = draw;
}
boolean containsPoint(int x, int y) {
// Check whether the shape contains the point (x,y).
// By default, this just checks whether (x,y) is inside the
// rectangle that bounds the shape. This method should be
// overridden by a subclass if the default behavior is not
// appropriate for the subclass.
if (x >= left && x < left+width && y >= top && y < top+height)
return true;
else
return false;
}
abstract void draw(Graphics g);
// Draw the shape in the graphics context g.
// This must be overridden in any concrete subclass.
} // end of class Shape
static class RectShape extends Shape {
// This class represents rectangle shapes.
void draw(Graphics g) {
g.setColor(color);
g.fillRect(left,top,width,height);
if (drawOutline) {
g.setColor(Color.black);
g.drawRect(left,top,width,height);
}
}
}
static class OvalShape extends Shape {
// This class represents oval shapes.
void draw(Graphics g) {
g.setColor(color);
g.fillOval(left,top,width,height);
if (drawOutline) {
g.setColor(Color.black);
g.drawOval(left,top,width,height);
}
}
boolean containsPoint(int x, int y) {
// Check whether (x,y) is inside this oval, using the
// mathematical equation of an ellipse.
double rx = width/2.0; // horizontal radius of ellipse
double ry = height/2.0; // vertical radius of ellipse
double cx = left + rx; // x-coord of center of ellipse
double cy = top + ry; // y-coord of center of ellipse
if ( (ry*(x-cx))*(ry*(x-cx)) + (rx*(y-cy))*(rx*(y-cy)) <= rx*rx*ry*ry )
return true;
else
return false;
}
}
static class RoundRectShape extends Shape {
// This class represents rectangle shapes with rounded corners.
// (Note that it uses the inherited version of the
// containsPoint(x,y) method, even though that is not perfectly
// accurate when (x,y) is near one of the corners.)
void draw(Graphics g) {
g.setColor(color);
g.fillRoundRect(left,top,width,height,width/3,height/3);
if (drawOutline) {
g.setColor(Color.black);
g.drawRoundRect(left,top,width,height,width/3,height/3);
}
}
}
} // end class ShapeDrawWithMenus
No comments:
Post a Comment
